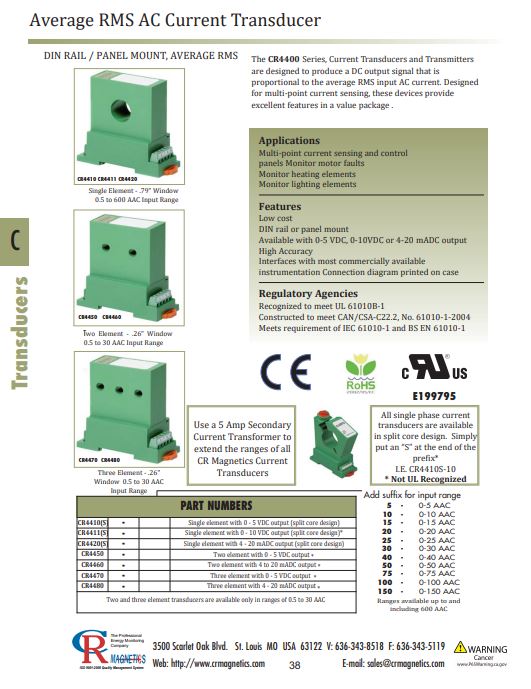

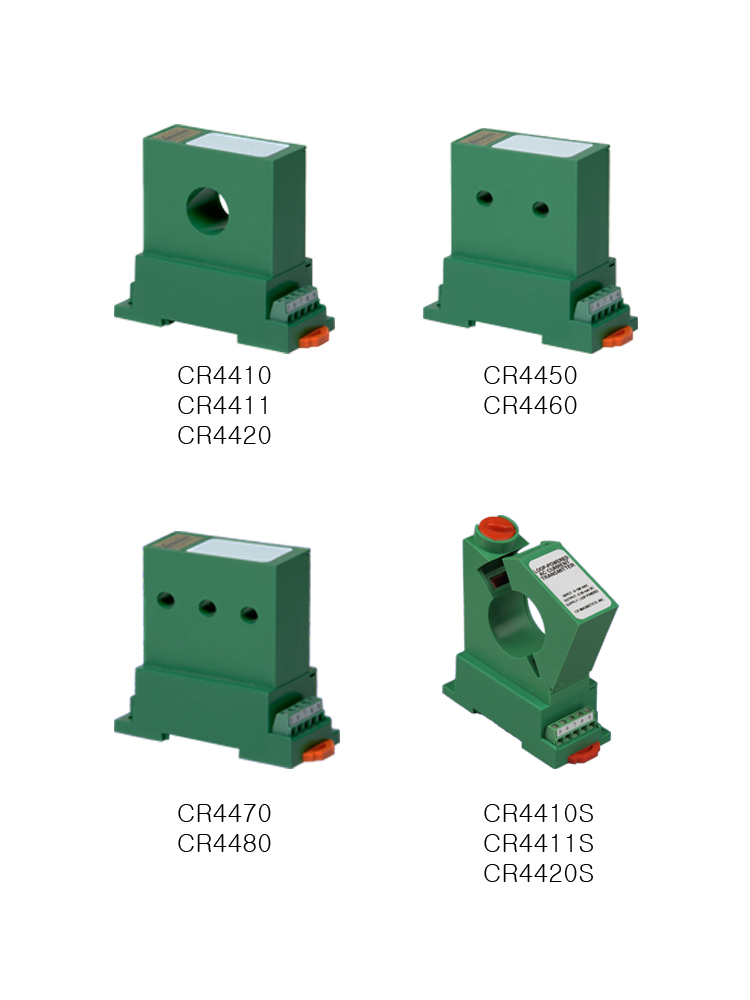

The CR4400 Series, Current Transducers and Transmitters are designed to produce a DC output signal that is proportional to the average RMS input AC current. Designed for multi-point current sensing, these devices provide excellent features in a value package .

Applications

Multi-point current sensing and control

panels Monitor motor faults

Monitor heating elements

Monitor lighting elements

Features

Low cost

DIN rail or panel mount

Available with 0-5 VDC, 0-10VDC or 4-20 mADC output

High Accuracy

Interfaces with most commercially available

instrumentation Connection diagram printed on case

Regulatory Agencies

Recognized to meet UL 61010B-1

Constructed to meet CAN/CSA-C22.2, No. 61010-1-2004

Meets requirement of IEC 61010-1 and BS EN 61010-1
