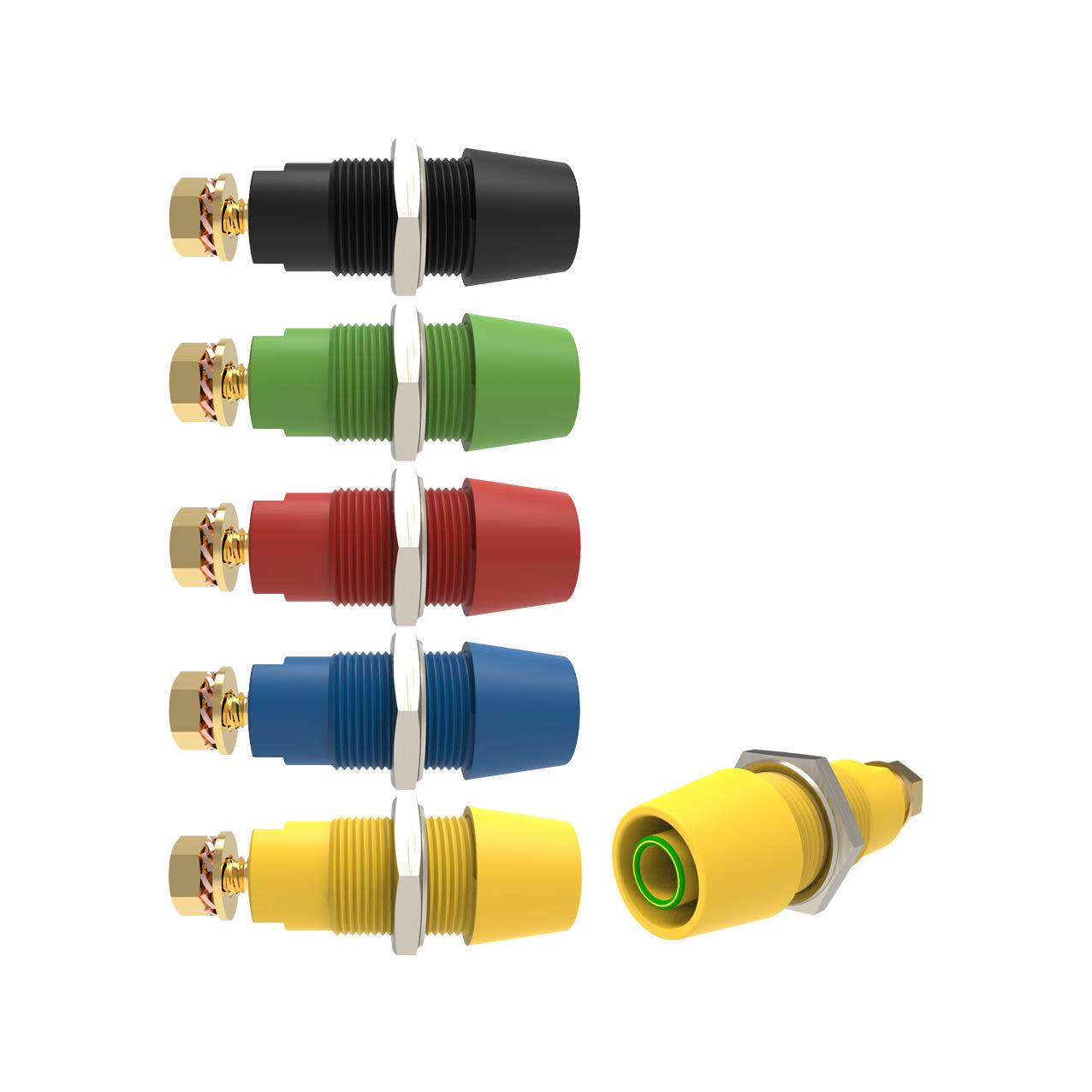

SAB 9430 Ni / SAB 9430 Au

Ø4mm safety threaded sockets

Ø4MM SAFETY THREADED SOCKETS 1500V 대응 판넬 소켓

Ø4mm 판넬 소켓입니다.

DC1500V를 대응할 수 있으며 최대 3mm 두께의 판넬까지 사용할 수 있습니다.

nickel-plated 모델과 gold-plated 모델 중 선택할 수 있습니다.

● Order No : SAB 9430 Ni / SAB 9430 Au ..(colour)

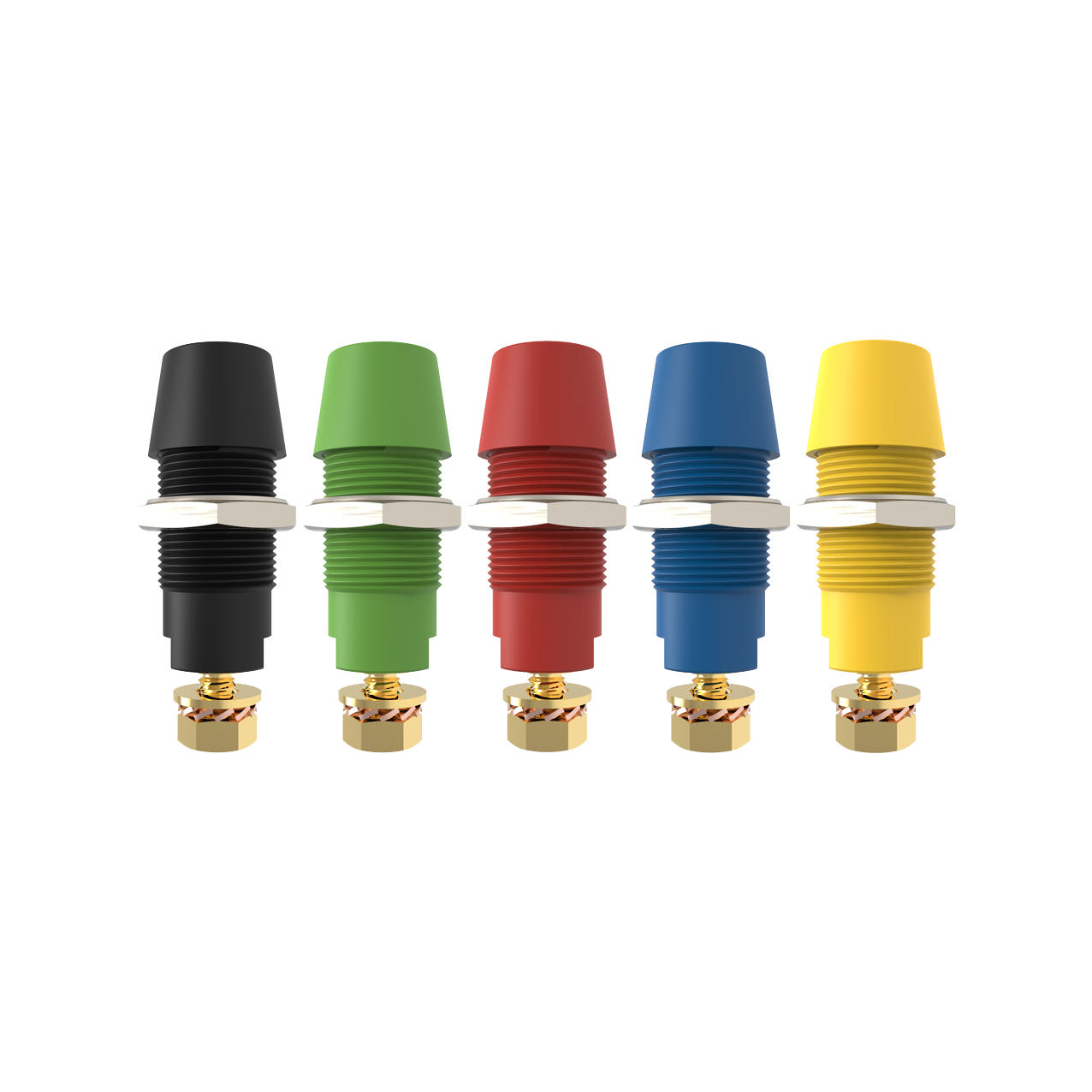

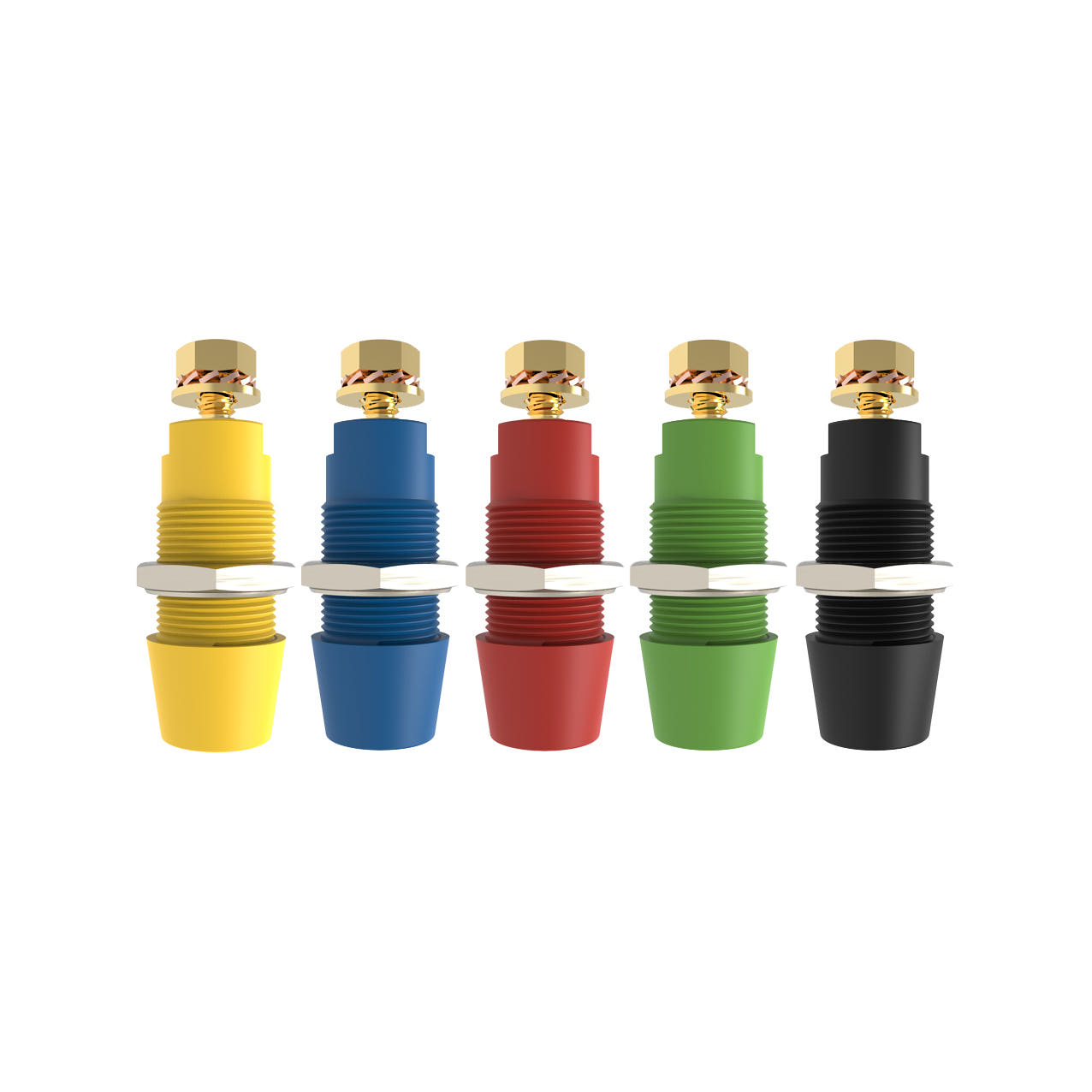

● Color : black, red, blue, yellow, green, grey, brown, white, purple, green-yellow

● Order No. SAB 9430 Ni / ..(colour)

· contact parts nickel-plated

· insulation PA 6.6 (Polyamid) UL94 - V2

· fastening nut

· (hexagon nut) M12 x 0.75

· colours see table

● Order No. SAB 9430 Au / ..(colour)

· as above

· contact parts gold-plated

· colours see table

조립지침 MA 028 / 경고공지 WH 062

● Technical data

· terminal : M4 x 0.7 Mutter

· rated voltage : 1500V DC 1000 V CAT Ⅲ / 600V CAT Ⅳ

· transition resistance : 7mΩ / 5mΩ

· rated current : 32 A

· operating temperature : from -25 °C to +80 °C

· max. torque fatening nut : 45 Ncm

· max. torque nut M4 : 100 Ncm
